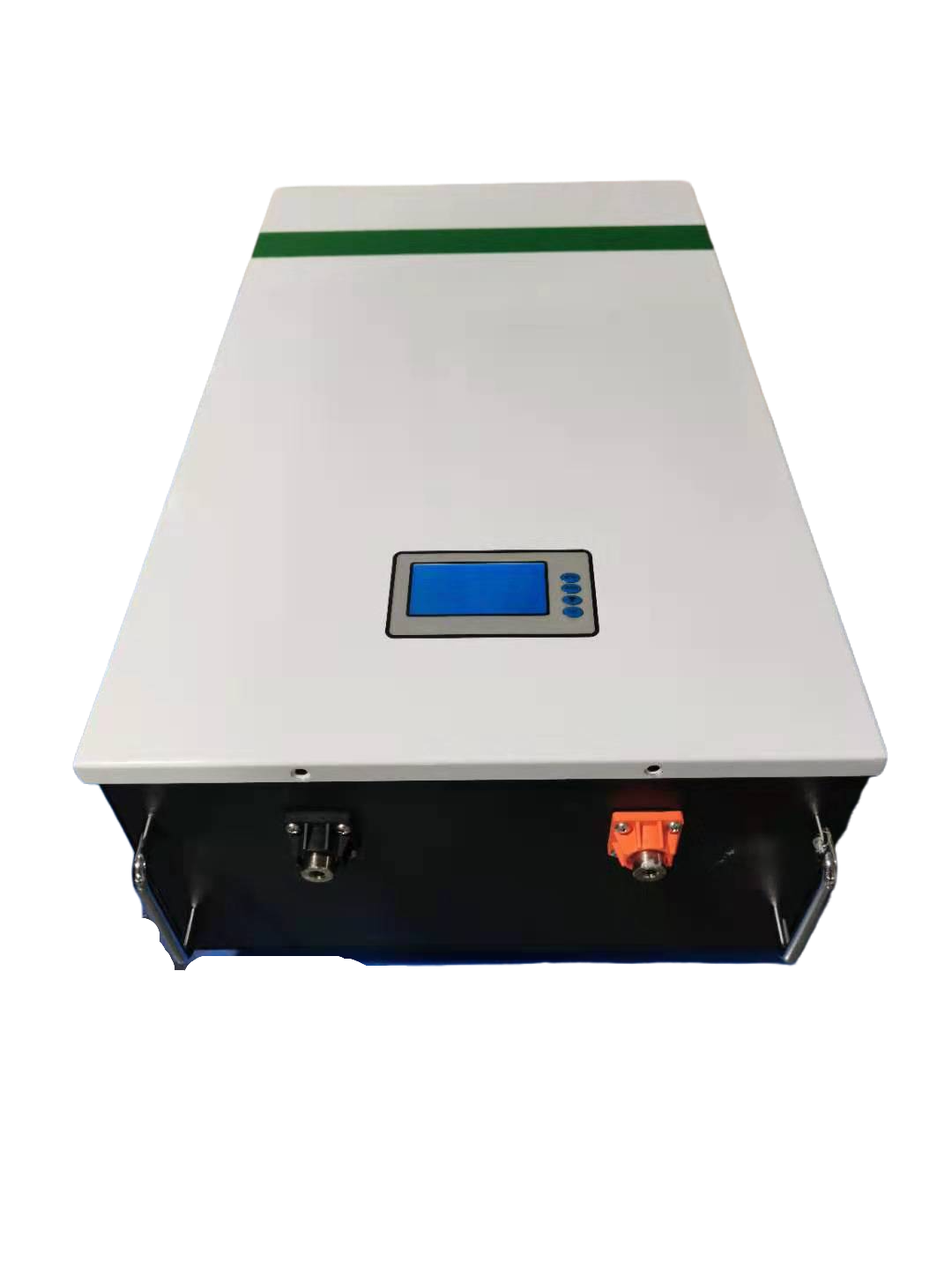

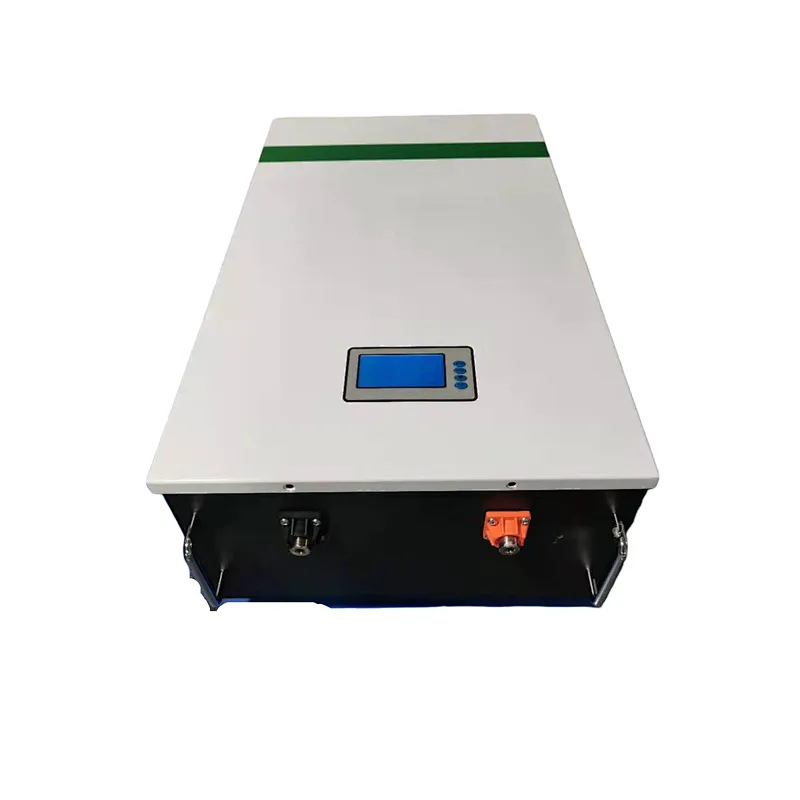

This powerful and long-lasting 48V 100ah rechargeable lithium iron phosphate (LiFePO4) battery is the best alternative to lead-acid battery packs in solar systems and electric cars. In comparision with lead-acid batteries, the 48V 100ah rechargeable lithium batteries store more energy and charge more quickly.
These 5 Kwh lithium batteries perform well in renewable energy applications. If you are looking for energy storage for on-grid or off-grid residential solar systems, these 48v rechargeable lithium batteries are a good choice. No matter for grid-connected or emergency backup power systems with or without solar energy, 5 Kwh deep-cycle Lithium Ion Solar batteries are a key component of off-grid solar power systems.
For renewable energy systems, the 48v battery bank solar system is compatible with many leading brands of inverters and solar charge controllers.
How to find a perfect lithium battery supplier, manufacturer, or factory? XD Battery from China is your best Choice! We wholesale OEM or ODM lithium batteries for mid to high-end markets. If you are from the United States, don't miss our custom service. Bulk buy 12v, 24v, or 48v lithium battery now!
Product Description
Parameter
Serial number | project | General parameters |
1 | Number of series | 16S |
2 | Rated voltage | 51.2V or 48V |
3 | End of discharge voltage | 43.2V or |
4 | Charging voltage | Recommend 56.4V (56V – 58.4V) |
5 | Internal resistance (battery pack) | ≤100mΩ |
6 | Self-discharge rate | ≤2%/month |
7 | range of working temperature | 0～65℃ charge |
8 | Storage temperature range | -40～70℃ |
9 | Positive and negative lead way | Terminal 4P*1 Fence terminal*1 |
10 | Display screen | LED display, four physical buttons |
11 | Protective function | Overcharge, over discharge, short circuit, overload, over temperature, etc. |
12 | Shipment product charge | 50% power when delivery |
13 | Packing material | Carton or Wooden box |
Battery Management System
S/N | function name | Function setting | Cell voltage alarm | Settings Value | Reference setting range |
1 | Monomer over-voltage protection | Turn on | Over-voltage protection voltage | 3750mV | 3000~6000mV |
2 | Cell under-voltage protection | Turn on | Under-voltage protection voltage | 2700mV | 100~3200mV |
3 | Battery over-voltage protection | Turn on | Over-voltage protection voltage | 57.6V | 40.0V~60.0V |
4 | Battery under-voltage protection | Turn on | Under-voltage protection voltage | 43.2V | 30.0V~60.0V |
5 | Cell high temperature protection | Turn on | Cell high temperature protection | 65℃ | 30℃~90℃ |
6 | Charging low temperature protection | Turn on | Charging low temperature protection | 0℃ | -5~5℃ |
7 | Discharge low temperature protection | Turn on | Discharge low temperature protection | -20℃ | -40~-10℃ |
8 | Overcurrent protection | Turn on | Overcurrent protection | 105A | 0A~110A |

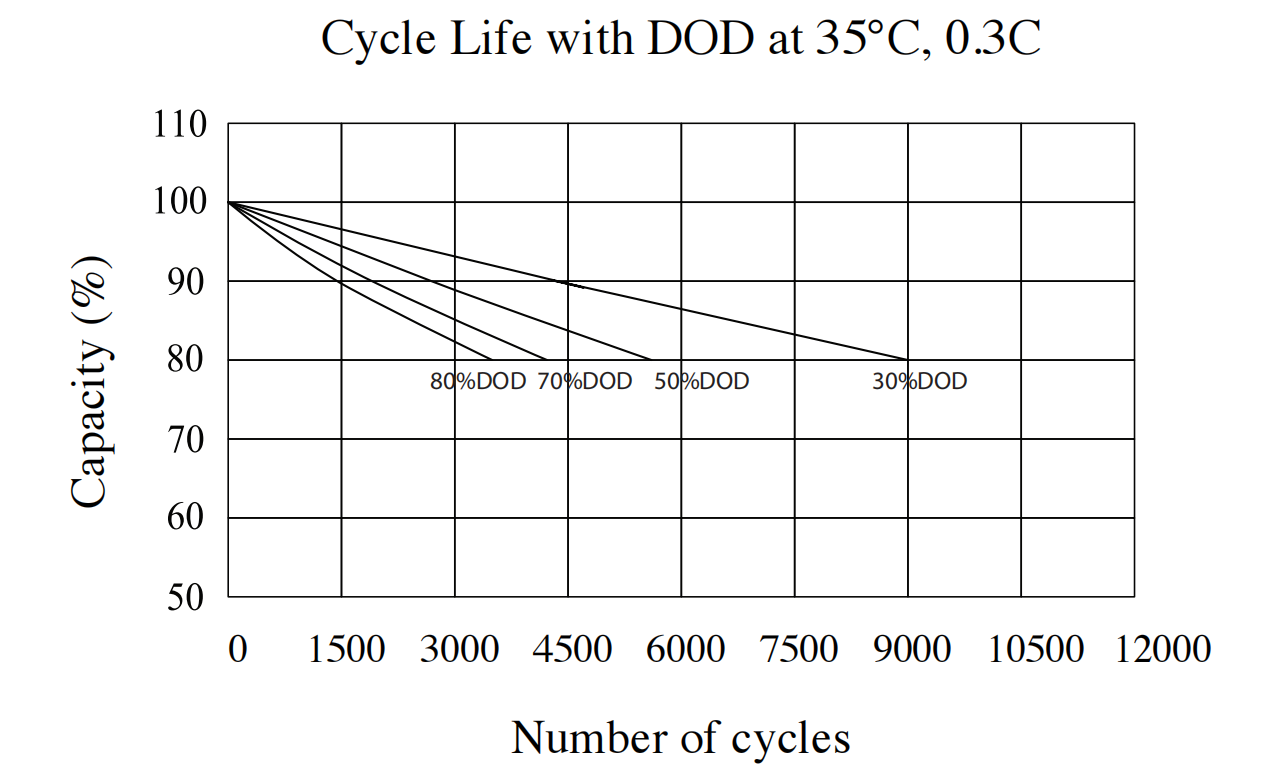

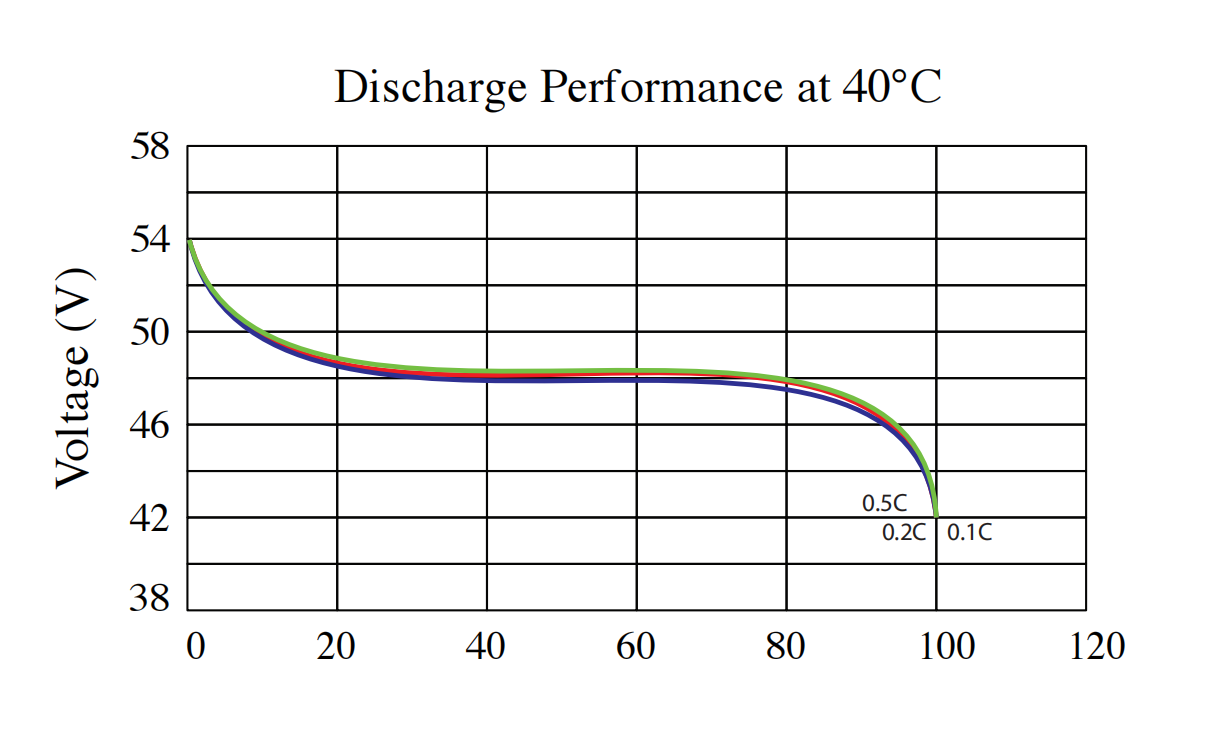

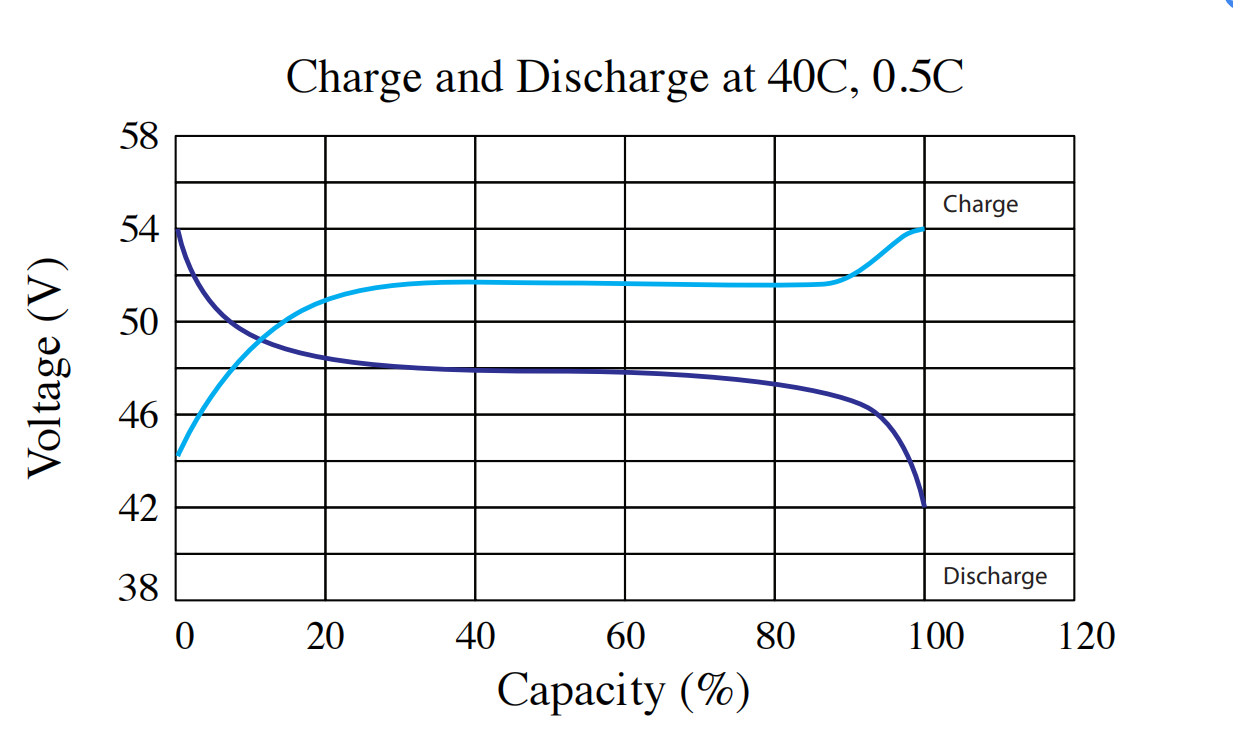

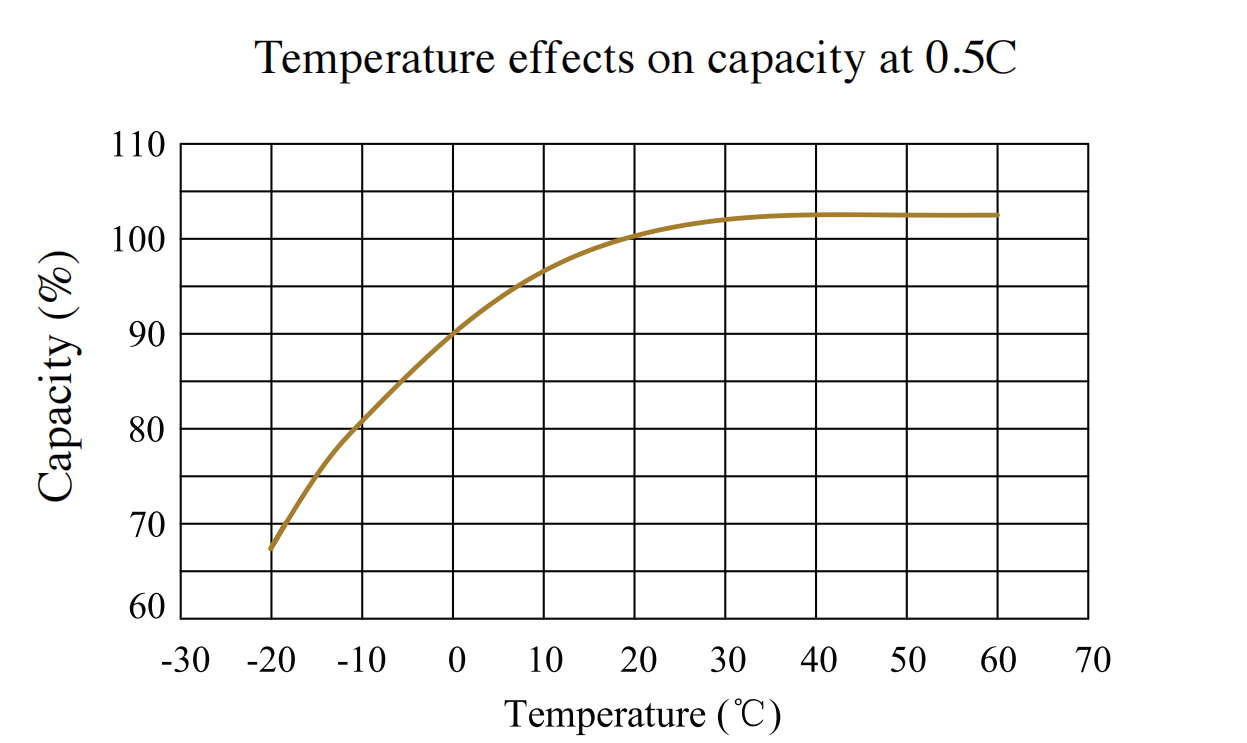

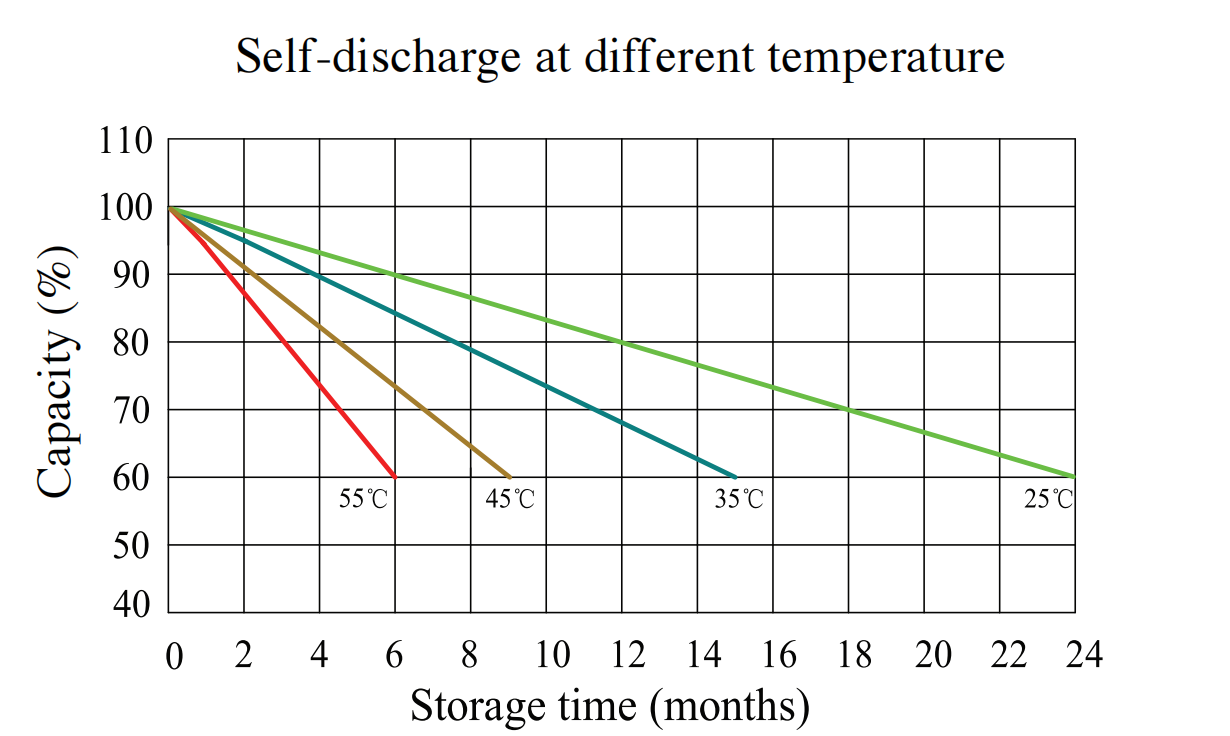

Performance Curves
