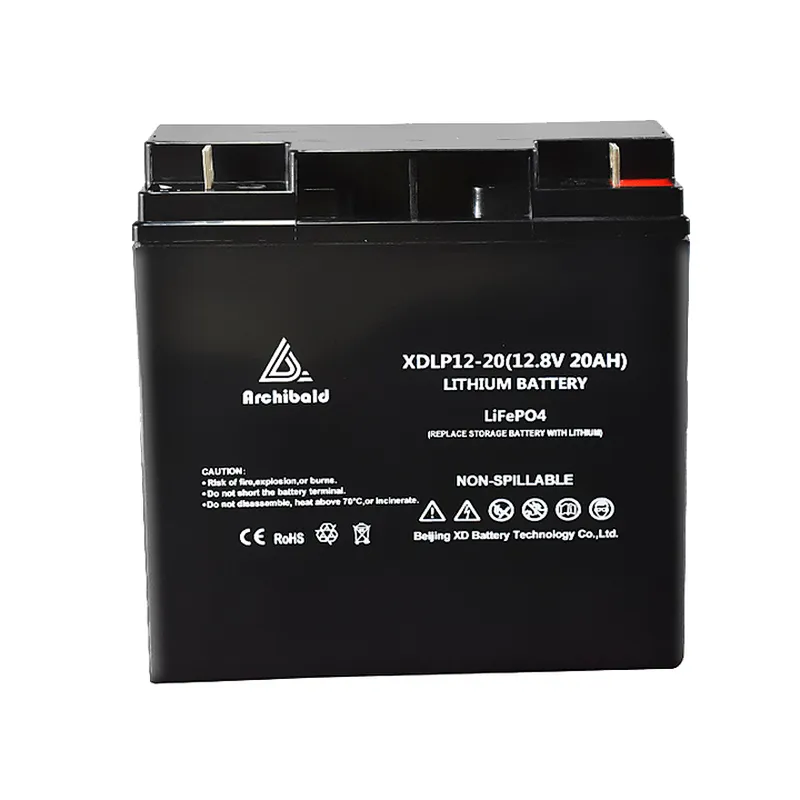

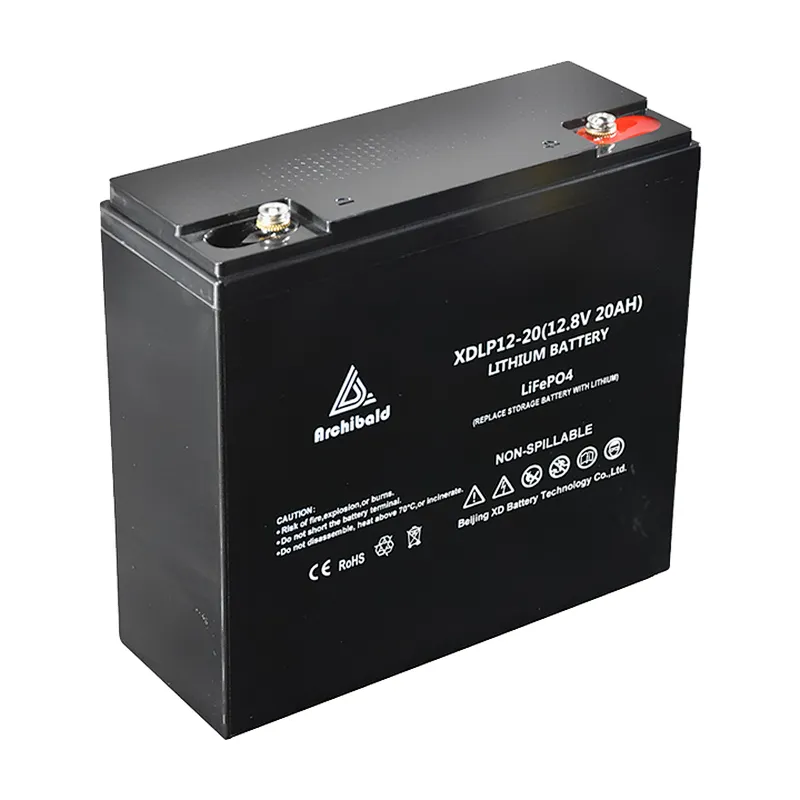

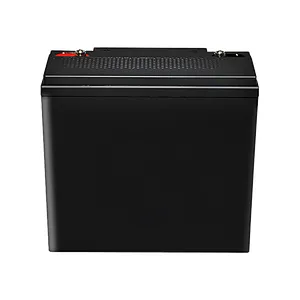

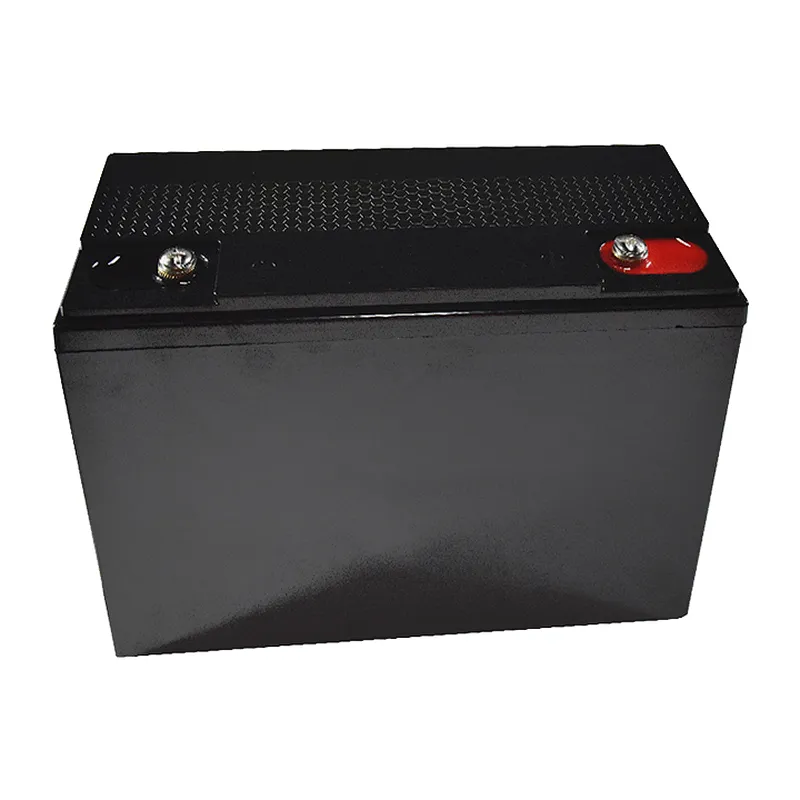

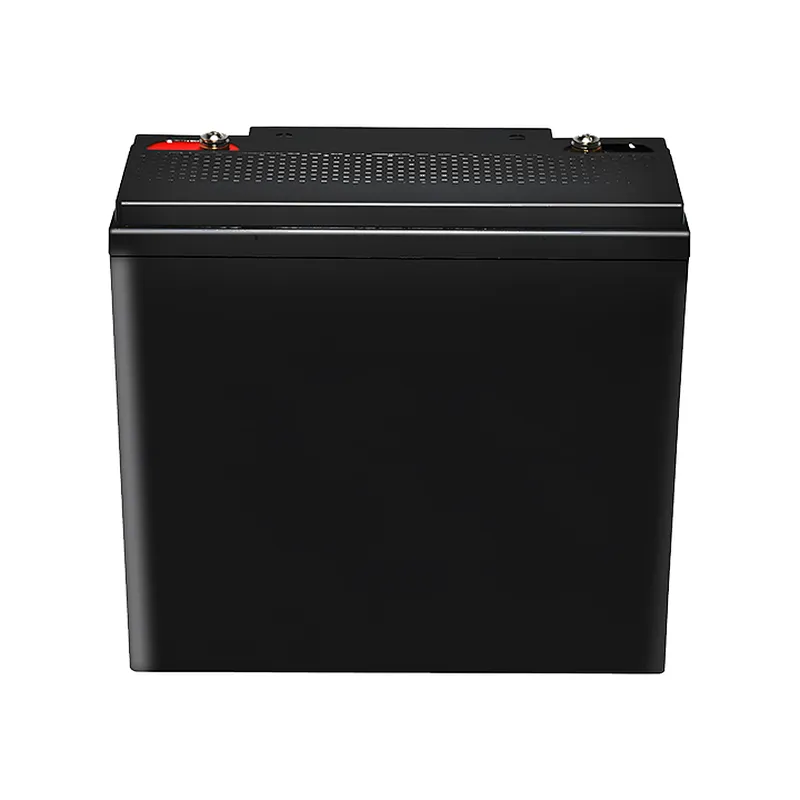

Welcome to purchase 12v 20ah Lithium batteries! Our 12v 20ah Lithium is a LiFePO4 battery or LFP battery. These batteries have long use-time, high safety, low weight, and fast charging. Thanks to the low self-discharge rate (<3% per month), these batteries can be stored for many years without maintenance.
To make our batteries have higher safety, we adopt cutting-edge technology and the BMS system to ensure that the batteries remain safe and stable during long-term use. These 12v 20ah LiFePO4 batteries are not the cheapest on the market, but they must be more cost-effective than other types of batteries in the long run.
Would you be confused when purchasing 12v 20ah Lithium in China? Because China has so many suppliers and manufacturers. Now you meet XD Battery. You need no confusion anymore! We are founded in 2006. With advanced machines and factories, we accept all types of customized orders. Our OEM and ODM Lithium batteries have TUV UL CE CSA CEC JET certifications. Bulk buy lithium batteries at the best wholesale prices now!
Charge Specification
| Recommended Charge Current | 5A-10A |
| Maximum Continous Charge Current | 10A |
| Recommended Charge Voltage | 14.6 V |
| BMS Charge Voltage Cut-Off | 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 12 V (3.8 ±0.05 vpc) |
| Balancing Voltage | 13.6 V (3.6 ±0.025 vpc) |
Discharge Specification
| Maximum Continuous Discharge Current | 20A |
| Peak Discharge Current | 30A (<5s) |
| BMS Discharge Current Cut-Off | 30A |
| Recommended Low Voltage Disconnect | 10.8V |
| BMS Discharge Voltage Cut-Off | 10.8V (2.7±0.05vpc) |
| Reconnect Voltage | 11.6 (2.9±0.1vpc) |
| Short Circuit Protection | 200-300 µs |
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 170 ºF (77 ºC) |
| Reconnect Temperature | 163 ºF (73 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
Mechanical Specifications
| Dimensions (L x W x H) | 181*77*175mm (7.13x3.03x7.28”) |
| Weight | 2.75 kg (3.2 lbs) |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Model | HB1220 |
| Specification | 3.2 V / 20 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
