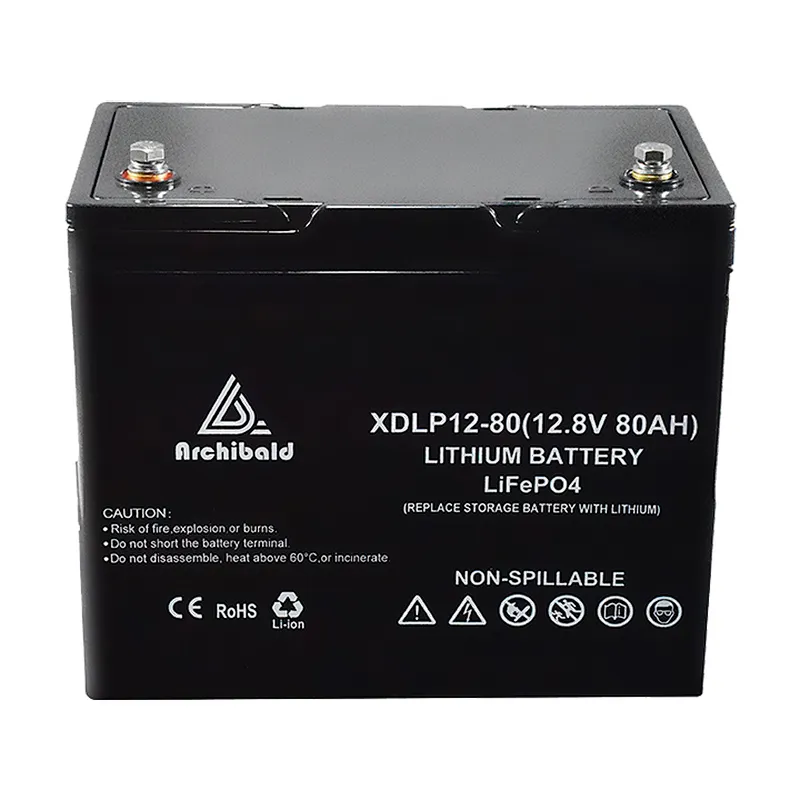

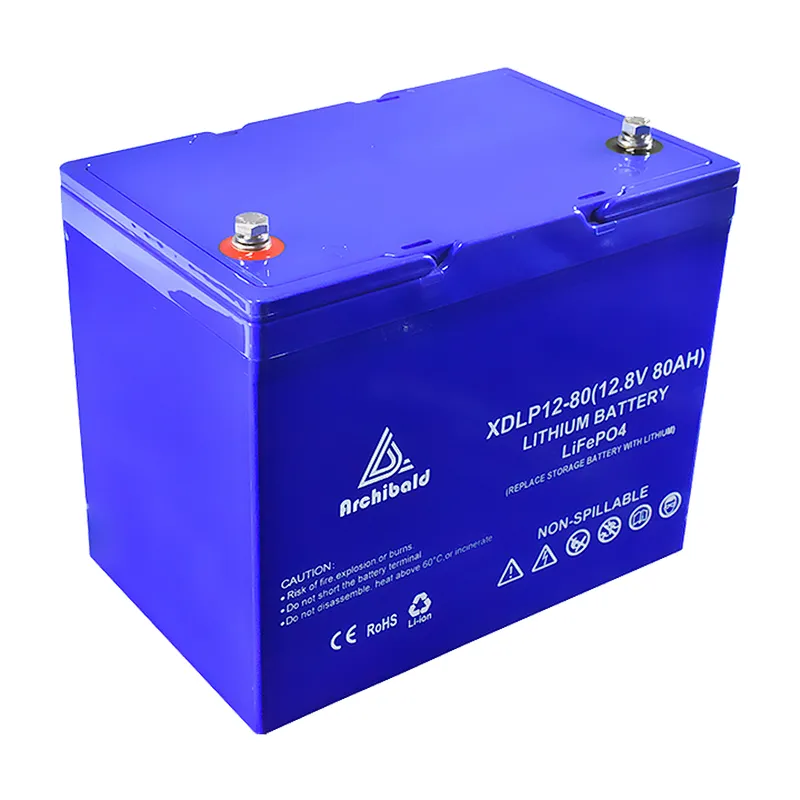

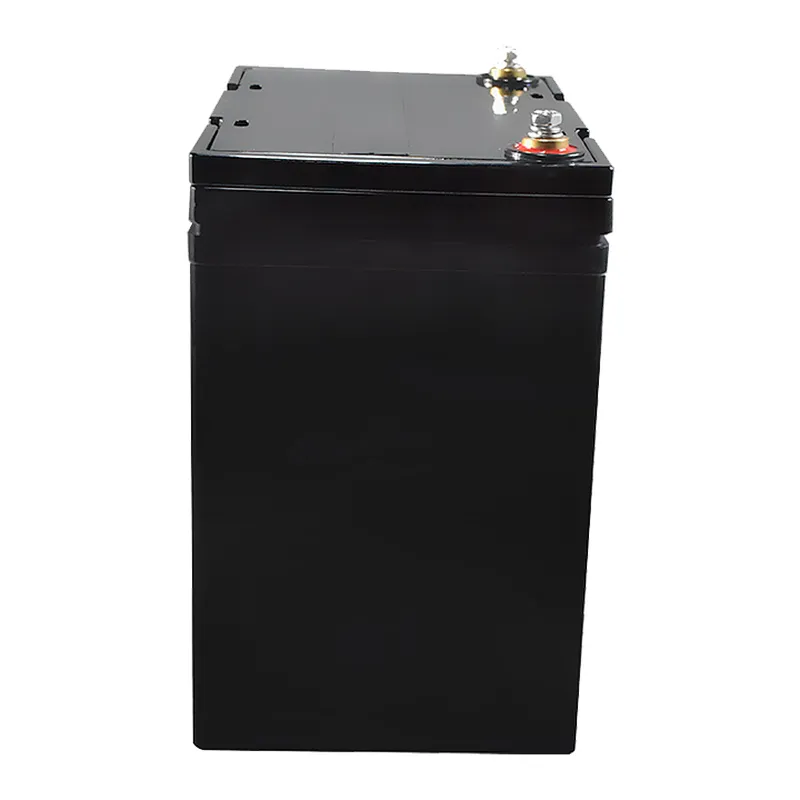

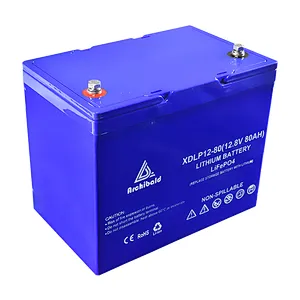

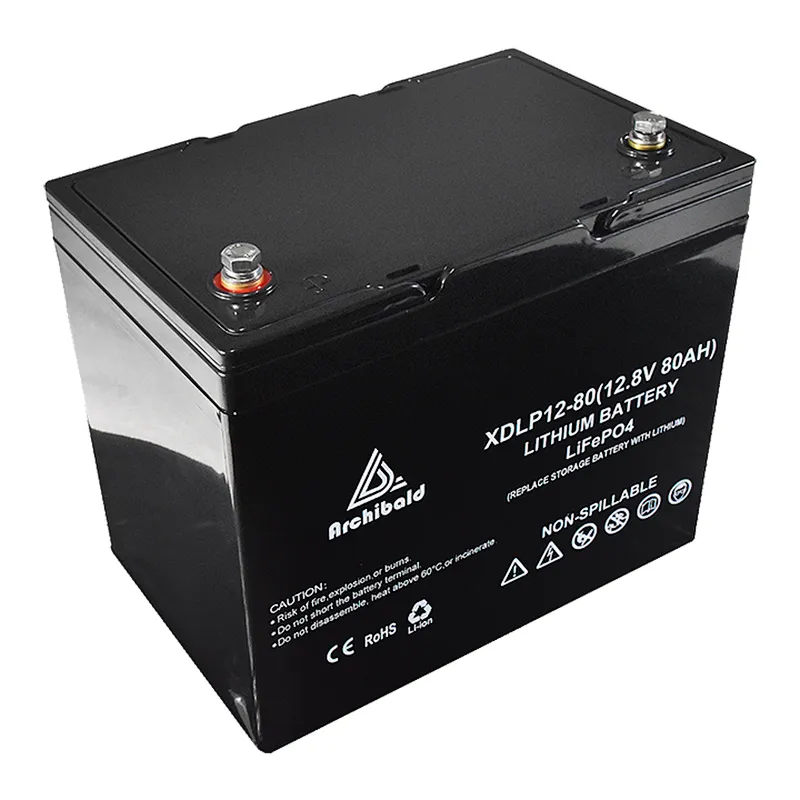

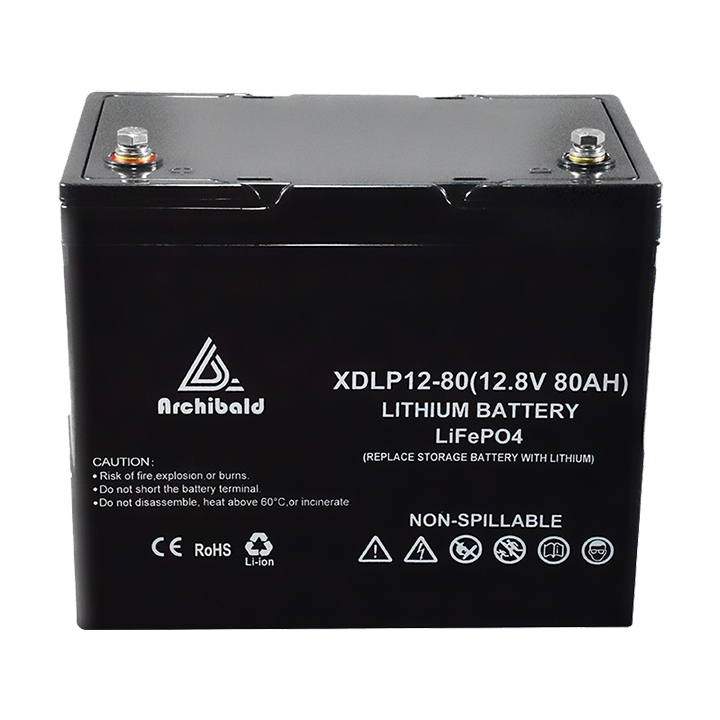

Why choose 12V 80ah LifePo4 battereis for electric golf cart ?
These12V 80AH lithium ion batteries for golf cart have the most compact power supply and lower power requirements. Users can use the battery to brighten the surrounding area and charge their phones and cameras.
Why LifePo4?
These LifePo4 batteries use Lithium iron phosphate materials which are the safest and most stable chemical material on the market. Our lithium batteries can give 3,000 deep discharges, whereas a conventional lead-acid battery has only 200 times. With a LifePo4 battery, the golf cart will get longer use life.
The weight of these 12v 80ah lithium batteries is nearly one-fifth that of traditional lead acid batteries. Due to the super-safe feature, even if consuming 100% energy capacity, the batteries will not get damaged.
We wholesale OEM and ODM 12V 80AH Lifepo4 at factory bulk prices! All the customized lithium ion batteries are TUV UL CE CSA CEC JET Certified. Every year, we produce over 1.2 Million batteries for suppliers and manufacturers around the world.
Charge Specification
| Recommended Charge Current | 5A-20A |
| Maximum Continous Charge Current | 60A |
| Recommended Charge Voltage | 14.6 V |
| BMS Charge Voltage Cut-Off | 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 12 V (3.8 ±0.05 vpc) |
| Balancing Voltage | 13.6 V (3.6 ±0.025 vpc) |
Discharge Specification
| Maximum Continuous Discharge Current | 60A |
| Peak Discharge Current | 65A (<5s) |
| BMS Discharge Current Cut-Off | 65A |
| Recommended Low Voltage Disconnect | 10.8V |
| BMS Discharge Voltage Cut-Off | 10.8V (2.7±0.05vpc) |
| Reconnect Voltage | 11.6 (2.9±0.1vpc) |
| Short Circuit Protection | 200-300 µs |
The 12v 80ah lithium battery has a constant output voltage and a more efficient power supply. Thus the battery can provide almost full power without any damage, which reduces and even eliminates the requirements for voltage regulation circuits. Compared with other batteries, the Lifepo4 battery has a longer cycle life and requires no maintenance. The built-in BMS battery management system can offer multiple protections.
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 170 ºF (77 ºC) |
| Reconnect Temperature | 163 ºF (73 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
LifePo4 batteries are the perfect replacement for lead-acid, AGM, or GEL batteries. LiFePO4 batteries are super safe with excellent thermal and chemical stability. In addition, their lightweight and compact size require small space, perfect for RVs, boats, commercial vehicles, and off-grid backup power supplies. Inquiry for 12an - 400 ah batteries!
Mechanical Specifications
| Dimensions (L x W x H) | 256*165*210mm (10.08x6.5x8.27”) |
| Weight | 9.3 kg (20.5 lbs) |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Product | Prismatic Aluminum-clad LFP Battery |
| Model | HB1280 |
| Specification | 3.2 V / 80 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
