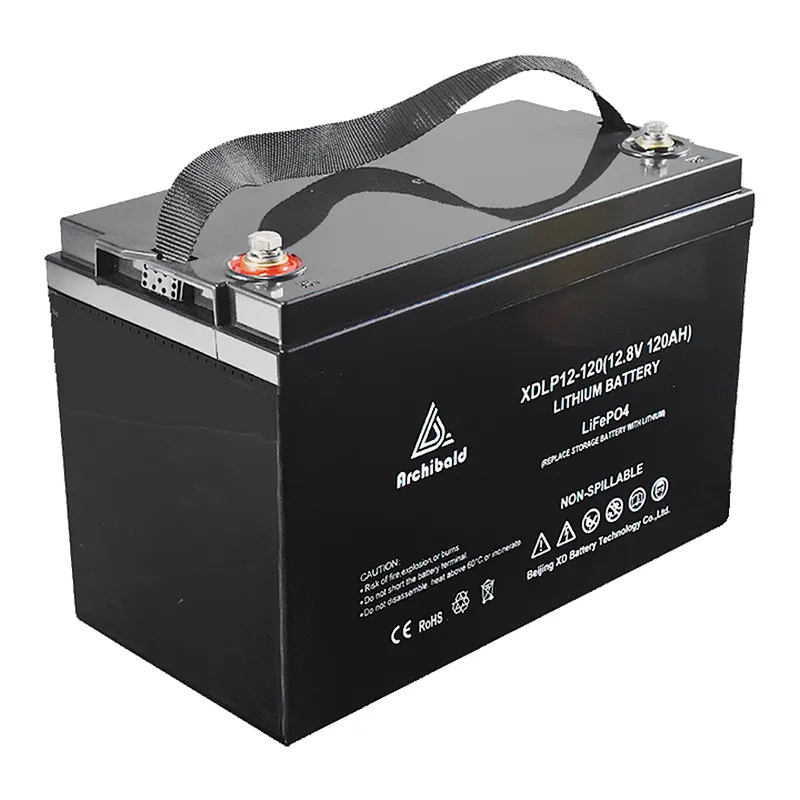

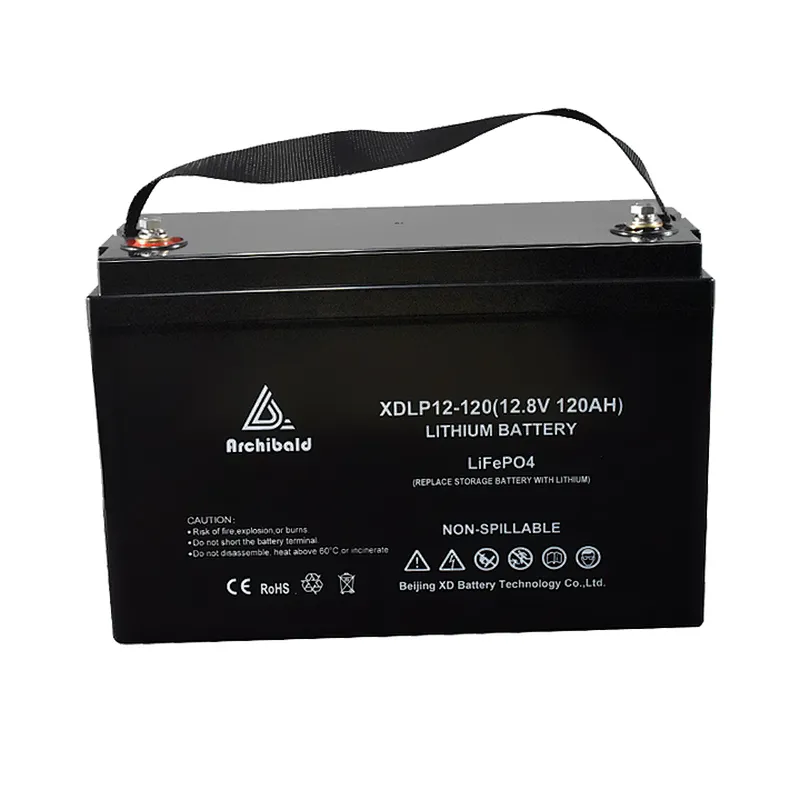

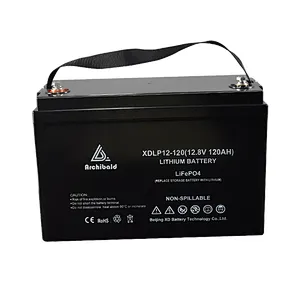

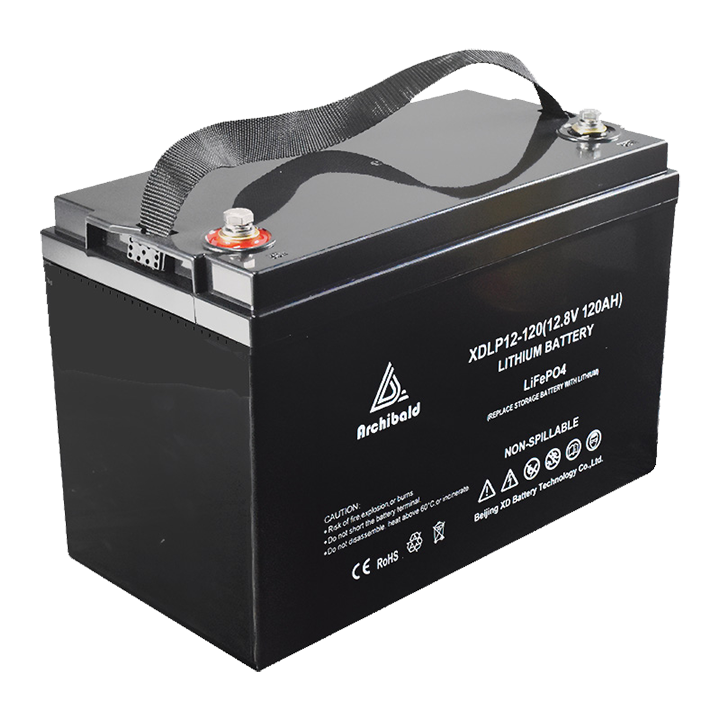

12V 120AH Lifepo4 Lithium Battery Pack lithium ion battery long life for RVs, Caravans, Motorhomes
12V 120AH Lifepo4 Lithium Battery Pack lithium ion battery long life for RVs, Caravans, Motorhomes
12V 120AH Lifepo4 Lithium Battery Pack lithium ion battery long life for RVs, Caravans, Motorhomes
12V 120AH Lifepo4 Lithium Battery Pack lithium ion battery long life for RVs, Caravans, Motorhomes
12V 120AH Lifepo4 Lithium Battery Pack lithium ion battery long life for RVs, Caravans, Motorhomes

12V 120AH Lifepo4 Lithium Battery Pack lithium ion battery long life for RVs, Caravans, Motorhomes

Model NO.
12V 120AH Lifepo4
Quantity:

The 12v 120ah lithium ion battery achieves automatic parallel connection balance and provides higher battery connection flexibility. With the BMS system,  the 12v 120ah lithium ion battery will not encounter any irregularities during recharging and discharging.

We use leading technology to ensure long cycle life and outstanding performance. If you are looking for deep-cycle flexible Electrochemical Lithium batteries, contact us right now! We will offer the best plug-and-play solution plan.

Who are we? We are your best choice of long-term supplier and manufacturer of Lifepo4 12v 120ah! With excellent factories, we are confident to provide the perfect OEM and ODM solutions. With 16 Years' experience, we have irreplaceable advantages in wholesale price, product quality, and customer service. Bulk the best Customized Lifepo4 batteries in China Now!


Charge Specification

Recommended Charge Current10A-50A
Maximum Charge Current100 A
Recommended Charge Voltage14.6 V
BMS Charge Voltage Cut-Off14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s)
Reconnect Voltage12 V

Discharge Specification

Maximum Continuous Discharge Current100A
Peak Discharge Current110A（3-5s）
BMS Discharge Current Cut-Off110A(300ms)
Recommended Low Voltage Disconnect10.8 V
BMS Discharge Voltage Cut-Off10.8V (2.7±0.05vpc)
Reconnect Voltage11.6V (2.9±0.1vpc)
Short Circuit Protection200-300 µs

Temperature Specification

Discharge Temperature-4 to 130 ºF (-20 to 55 ºC)
Charge Temperature32 to 130 ºF (0 to 55 ºC)
Storage Temperature - 1 month-4 to 113 ºF (-20 to 45 ºC)
Storage Temperature - 1 year32 to 95 ºF (0 to 35 ºC)
BMS High Temperature Cut-Off176 ºF (80 ºC)
Reconnect Temperature122 ºF (50 ºC)
BMS Low Temperature Cut-Off (Charging)32 ºF (0 ºC)
Reconnect Temperature (Charging)41 ºF (5 ºC)

BMS Overview

Over Current Protectionyes
Under Voltage Protectionyes
Over Voltage Protectionyes
Overload Protectionyes
High Temperature Protectionyes
Low Temperature Protection32 ºF (0 ºC) / 41 ºF (5 ºC)
Short Circuit Protectionyes

Mechanical Specifications

Dimensions (L x W x H)325*170*220mm (12.8x6.7x8.66”)
Weight13.6 kg (30.0 lbs)
Terminal TypeM8 （20mm）
Case MaterialABS
Enclosure ProtectionIP65
Cell Type - ChemistryPrismatic - LiFePO4

Certifications

MSDS DatasheetMSDS
UN38.3DG61
CE CertificationEN61000-6-1, EN61000-6-3
ROHS CertificationROHS
FCC CertificationPart15B
IEC62619 documentation or 49 CFRIEC62619 / 49 CFR 173.185
IMDG CodeUN3840 / Class 9
