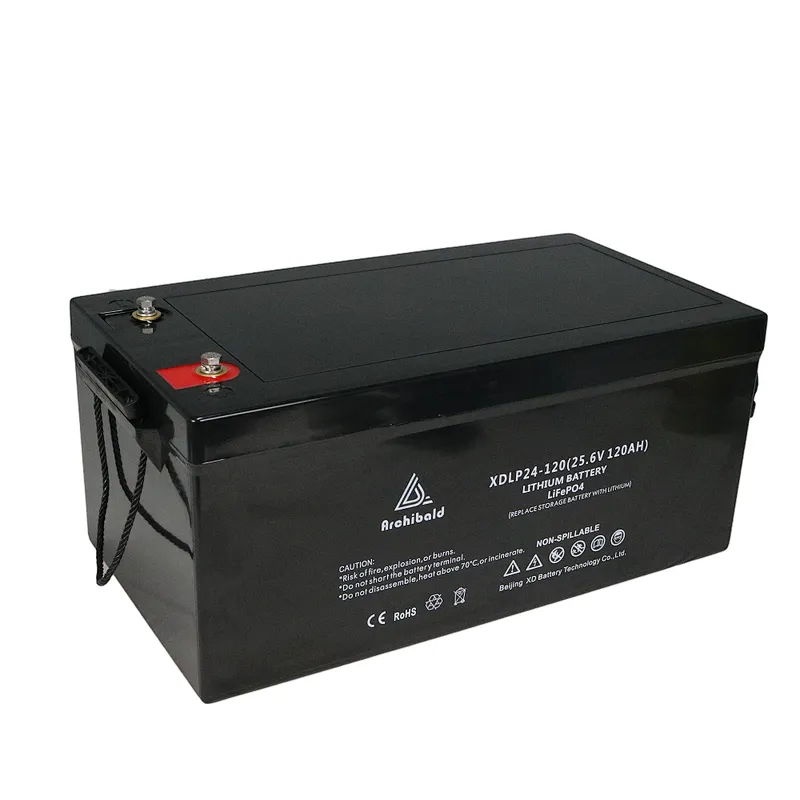

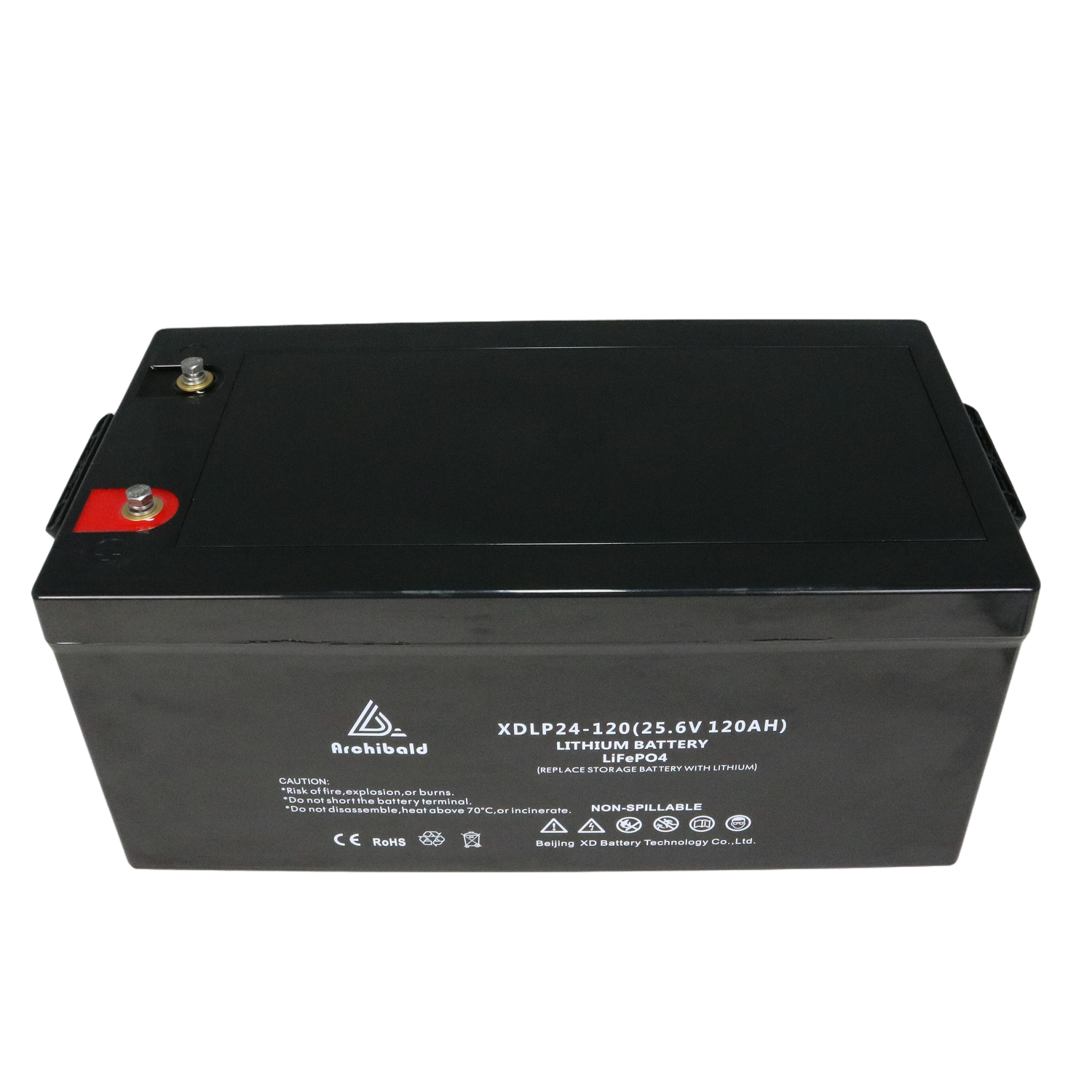

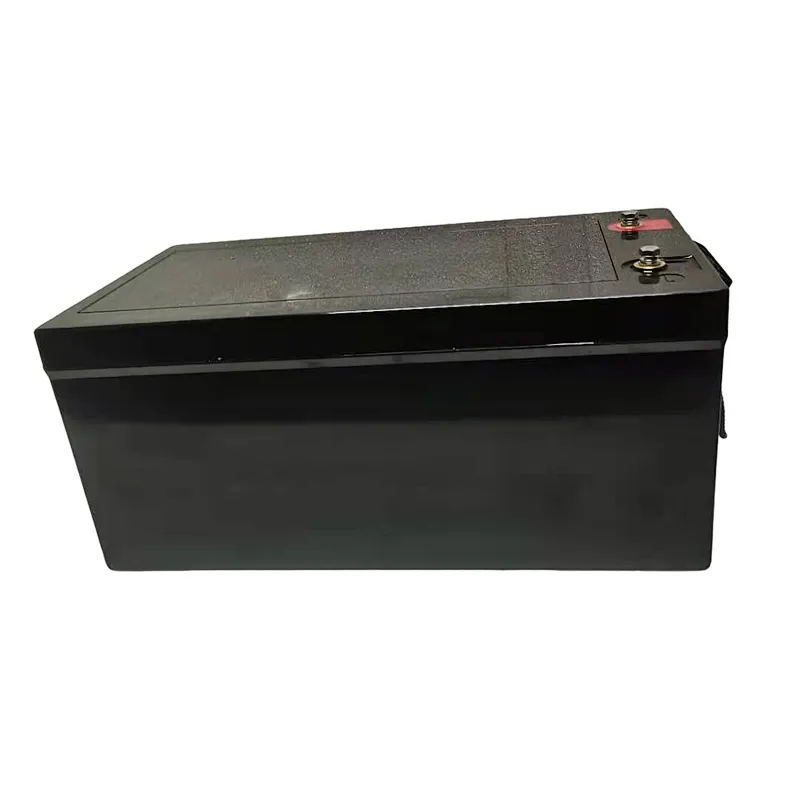

The 24V 120ah lithium iron phosphate battery is suitable for off-grid solar energy, RVs, and other applications. We use advanced LiFePO4 technology to improve the battery's performance, power, and life. All the 24v 120ah LifePo4 batteries perform well in harsh extreme weather and various applications. With the BMS system, the batteries can resist current, voltage, and temperature.
If you are interested in this 24v 120ah lithium iron phosphate battery, do not hesitate and contact us now! We provide customized service by which you can purchase batteries in different shapes, temperature conditions, specs, BMS, voltage, capacity, charging current, discharging current, etc.
We have been deeply involved in lithium batteries for 16+ years. And we are a first-class lithium battery supplier and manufacturer in China. With leading technology and equipment, we wholesale OEM and ODM lithium batteries to more than 120 countries. All the customized batteries are TUV UL CE CSA CEC JET certified. Contact us now to get more information about the factory, bulk, and more!
Charge Specification
| Recommended Charge Current | 25A ( Range:0.2C -0.5C ) |
| Maximum Charge Current | 100 A |
| Recommended Charge Voltage | 29.2V |
| BMS Charge Voltage Cut-Off | 29.6V |
| Reconnect Voltage | 28.4V |
| Balancing Voltage | 27.24V |
Discharge Specification
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 250A(3-5s) |
| BMS Discharge Current Cut-Off | 600A(500ms) |
| Recommended Low Voltage Disconnect | 21 V |
| BMS Discharge Voltage Cut-Off | 18.8 V (2.0 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage | 20.4 V (2.3 ±0.1 vpc) |
| Short Circuit Protection | 200-300 µs |
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 176 ºF (80 ºC) |
| Reconnect Temperature | 122 ºF (50 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
Mechanical Specifications
Dimensions (L x W x H) | 20.67"×10.63"×9.06"（525×270×230mm） |
Weight | 63.93 lbs (29kg) |
Terminal Type | M8 (22mm) |
Terminal Torque | 10 ~ 12 N-m |
Case Material | ABS |
Enclosure Protection | IP65 |
Cell Type - Chemistry | Cylinderical - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Brand | OptimumNano |
| Product | 32650 cylinderical LFP Battery |
| Model | LF105 |
| Specification | 3.2 V / 6 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
BMS
| Model | LFP-8S-100A |
| Max Continous Dsicharge Current | 100A |
| Cell Balancing | 27.24V |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 0C Disconnect, 5C Reconnect |
| Short Circuit Protection | yes |
Battery Case
| Dimensions (L x W x H) | 19.02×6.69×9.45"（483×170×240mm） |
| Terminal Type | M8 (22mm) |
| Terminal Torque | 10 ~ 12 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
The 24v 120ah lifepo4 battery pack is available in fishing boats, trolling boats, kayaks, and marine yachts. Because of its superior design, the battery can withstand the impact of bumps or vibrations.
Compared with most other batteries, LifePo4 batteries have quicker charging, more durability, and higher safety. Choose the best 24v 120ah lifepo4 battery now! Or purchase customized batteries based on the specific requirements of your application equipment. Welcome to contact us!
