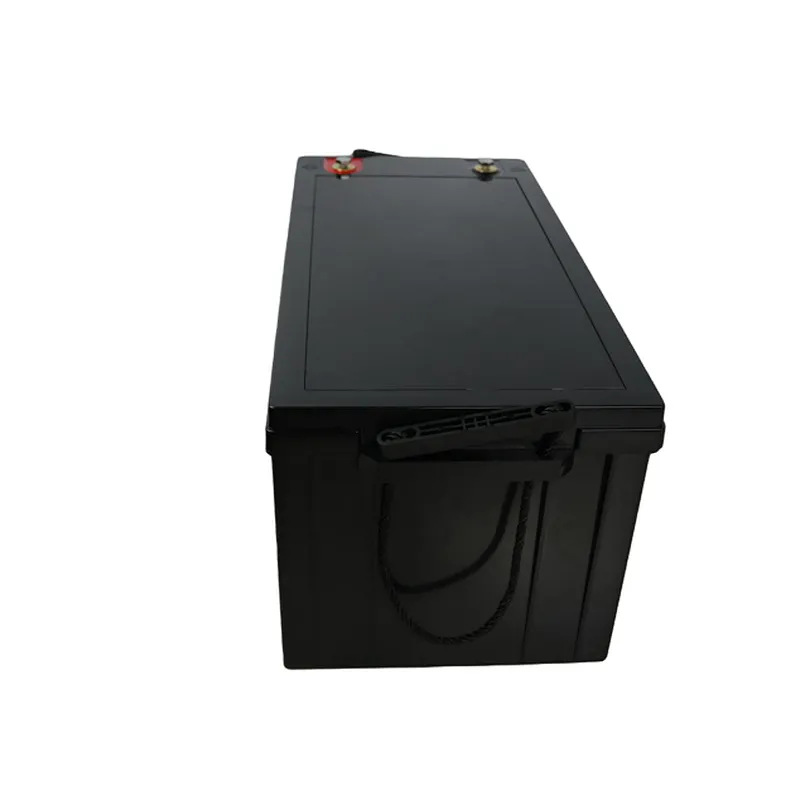

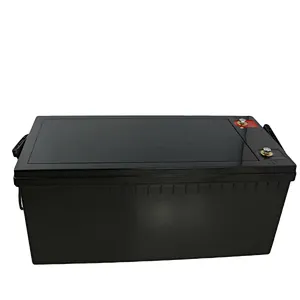

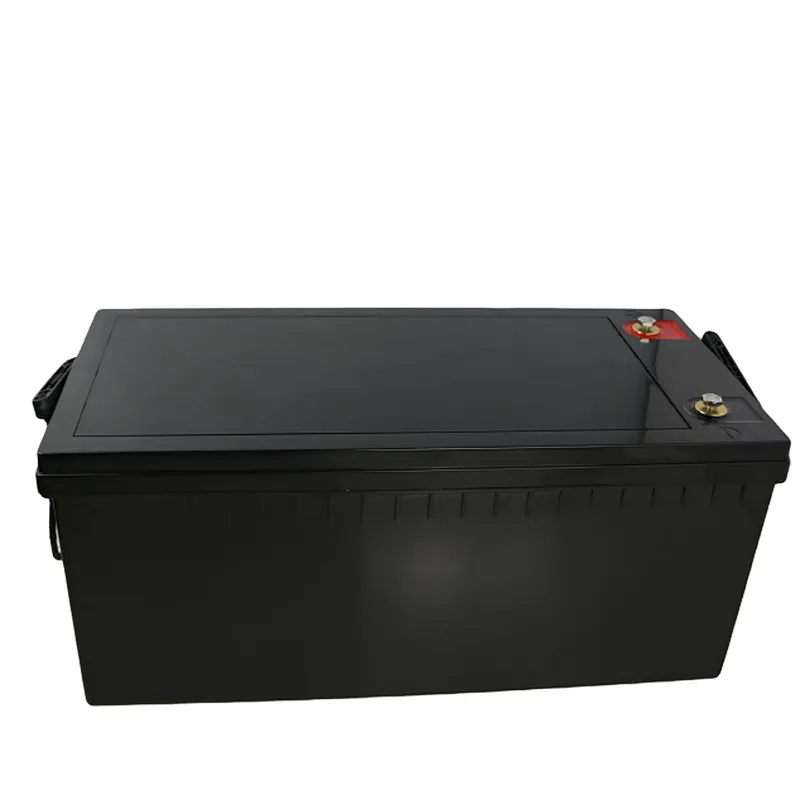

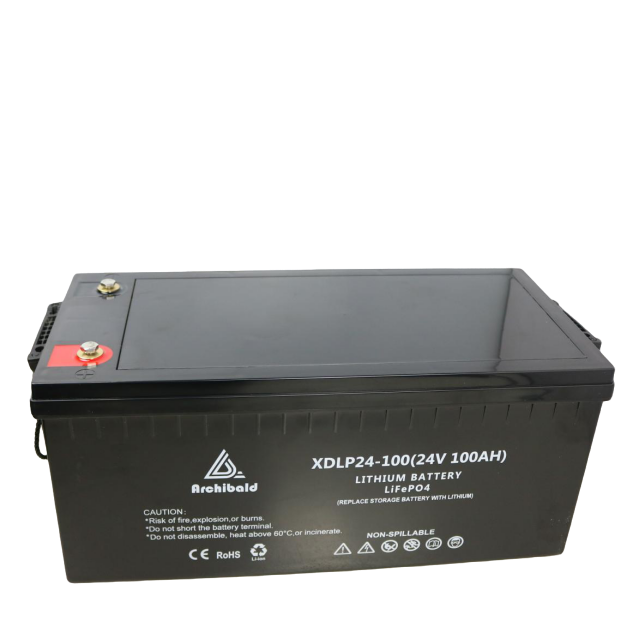

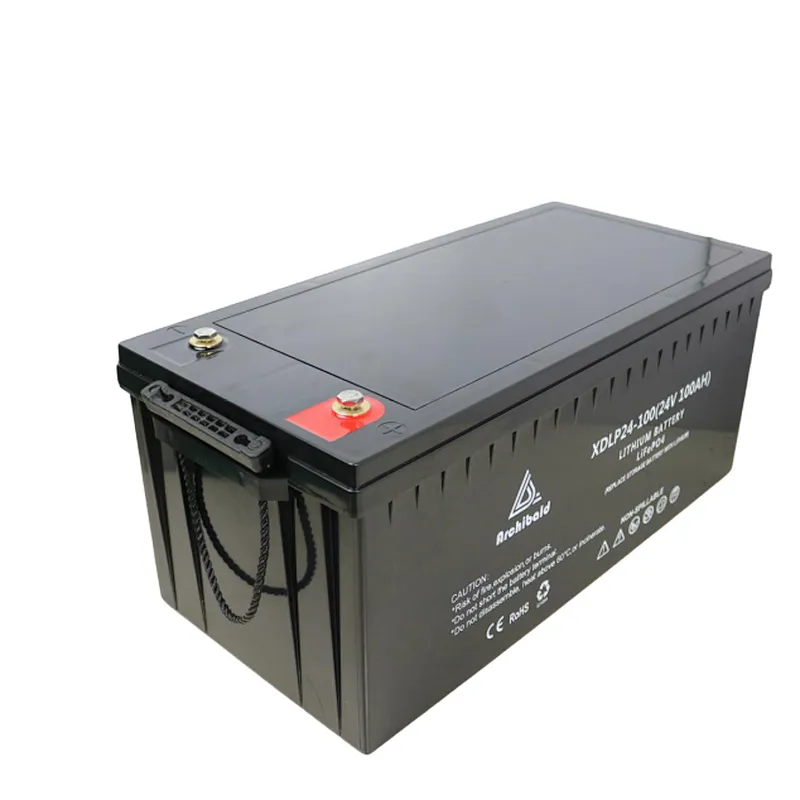

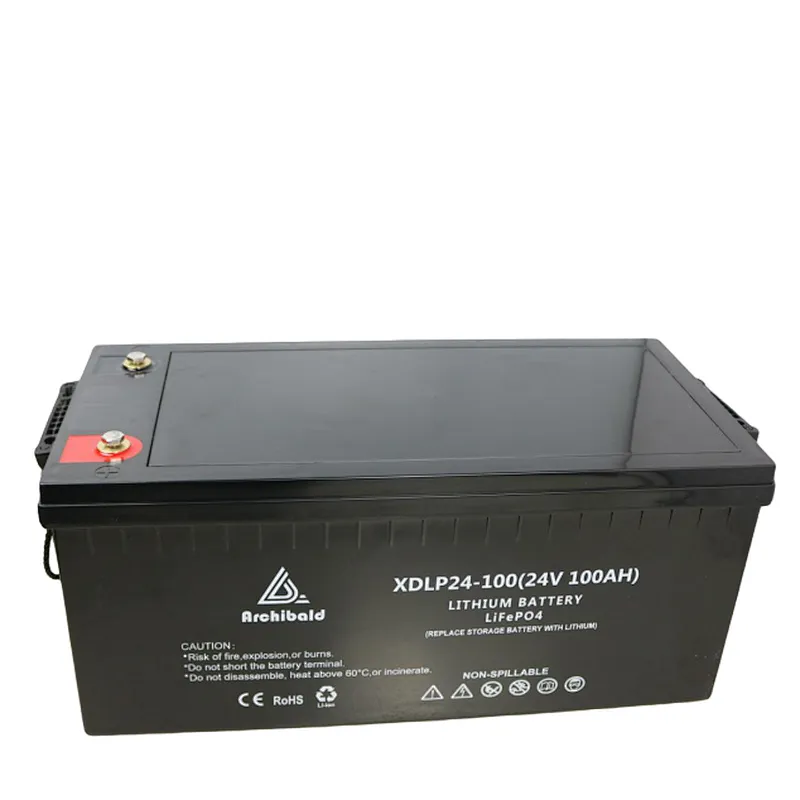

This 24v 100ah lifepo4 battery has wide applications, perfect for ships and electric vehicles. Due to the overcharge protection system, this rechargeable battery achieves a steady power output.
Our lithium-ion rechargeable battery packs are simple to set up, charge quickly and require minimal maintenance. Besides, they are powerful and long-lasting, ensuring fishing from dawn to dusk.
With lithium iron phosphate (LiFePo4) technology, our 24v 100ah lithium iron lifepo4 battery has twice the power, half the weight, and four lifetimes of a sealed lead-acid battery. Up to now, the rechargeable lithium ion battery must be the best choice for applications that require a lot of power.
Why choose XD Battery? We have advanced factories, rich experience in customization, and attractive wholesale quality and prices. We have provided OEM and ODM batteries to customers from more than 120 countries since 2006, producing more than 1.2 Million Units per year. We highly recommend that you order 24v 100ah samples immediately. Once you try the samples order, you want to bulk buy more. We expect to be your long-term China supplier and manufacturer!
Charge Specification
| Recommended Charge Current | 25A ( Range:0.2C -0.5C ) |
| Maximum Charge Current | 100 A |
| Recommended Charge Voltage | 29.2V |
| BMS Charge Voltage Cut-Off | 29.6V |
| Reconnect Voltage | 28.4V |
| Balancing Voltage | 27.24V |
The 24v 100ah LifePo4 battery can be stored for long time becasue its self-discharge rate is pretty low. Ingeneral, a battery with full charge can be stored for a year. If you prepare to store battereis for longer periods, make sure that disconnect all wires from them. By that way, there will not be any stray loads discharging the rechargeable lithium ion battery pack.
Discharge Specification
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 250A(3-5s) |
| BMS Discharge Current Cut-Off | 600A(500ms) |
| Recommended Low Voltage Disconnect | 21 V |
| BMS Discharge Voltage Cut-Off | 18.8 V (2.0 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage | 20.4 V (2.3 ±0.1 vpc) |
| Short Circuit Protection | 200-300 µs |
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 176 ºF (80 ºC) |
| Reconnect Temperature | 122 ºF (50 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
Mechanical Specifications
| Dimensions (L x W x H) | 19.02×6.69×9.45"（483×170×240mm） |
| Weight | 48.5 lbs (22kg) |
| Terminal Type | M8 (22mm) |
| Terminal Torque | 10 ~ 12 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Brand | EVE Energy Co., Ltd |
| Product | Prismatic Aluminum-clad LFP Battery |
| Model | LF105 |
| Specification | 3.2 V / 105 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
24v 100ah Lifepo4 battery is a battery (AR) replacing AGM, deep cycle gel, and lead-rich batteries, suitable for any application. Its cycle is up to 3000 times at 80% of the depth of discharge without emissions. Thanks to the built-in battery management system (BMS) and anti-inflammatory coating, the batteries are environmentally friendly and very safe.
