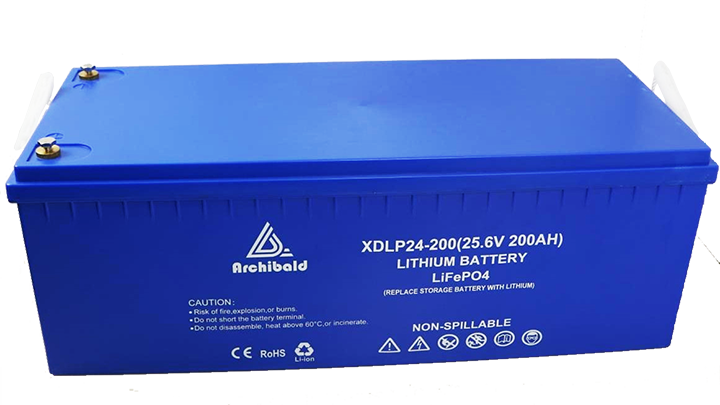

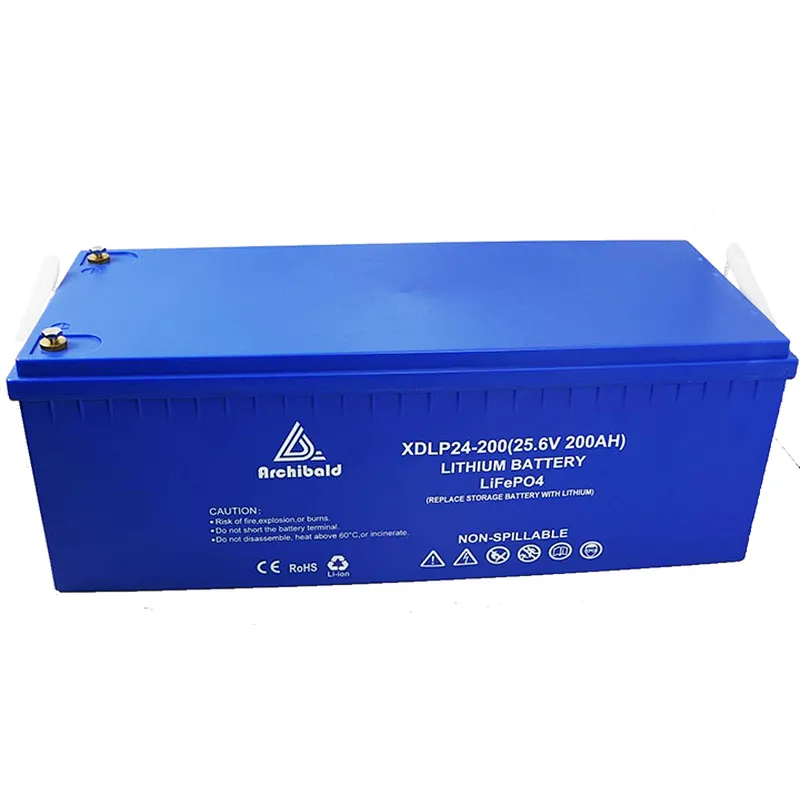

24V 200AH Lifepo4 Battery lithium ion battery solar charger for RV, Motorhomes, Caravans, solar trailer, residential solar off grid

Model NO.: 24V 200AH Lifepo4 Battery

Quantity:

Product Description

This solar lithium-ion Lifepo4 battery is 24 volts and 200 amps, suitable for ships and electric vehicles. It is steady and powerful, ensuring long-time use. With a User-friendly design, the Lifepo4 is easy to install, charges quickly and requires no maintenance.

We use advanced technology and built-in overcharge protection systems to enhance the battery's performance and safety. Compared with a sealed lead-acid battery, this solar l24v 200ah Lifepo4 Battery has half weight, twice power, and four times service life.

Not all OEM or ODM lithium batteries are created equal. XD offers the perfect customized solutions within your budget! We insist on the balance between the bulk price and quality for a win-win for buyers and manufacturers. If you need a reliable, authoritative, and large-scale supplier, China XD is your best choice! Click for factory direct wholesale!

Charge Specification

Recommended Charge Current	10A-50A
Maximum Charge Current	100 A
Recommended Charge Voltage	29.2V
BMS Charge Voltage Cut-Off	29.2V
Reconnect Voltage	24V

Discharge Specification

Maximum Continuous Discharge Current	150 A
Peak Discharge Current	155A(3-5s)
BMS Discharge Current Cut-Off	155A(500ms)
Recommended Low Voltage Disconnect	21.6V
BMS Discharge Voltage Cut-Off	21.6V
Reconnect Voltage	23.2 (2.9±0.1vpc)
Short Circuit Protection	200-300 µs

Temperature Specification

Discharge Temperature	-4 to 130 ºF (-20 to 55 ºC)
Charge Temperature	32 to 130 ºF (0 to 55 ºC)
Storage Temperature - 1 month	-4 to 113 ºF (-20 to 45 ºC)
Storage Temperature - 1 year	32 to 95 ºF (0 to 35 ºC)
BMS High Temperature Cut-Off	176 ºF (80 ºC)
Reconnect Temperature	122 ºF (50 ºC)
BMS Low Temperature Cut-Off (Charging)	32 ºF (0 ºC)
Reconnect Temperature (Charging)	41 ºF (5 ºC)

BMS Overview

Over Current Protection	yes
Under Voltage Protection	yes
Over Voltage Protection	yes
Overload Protection	yes
High Temperature Protection	yes
Low Temperature Protection	32 ºF (0 ºC) / 41 ºF (5 ºC)
Short Circuit Protection	yes

Mechanical Specifications

Dimensions (L x W x H)	640245220mm (25.2x9.65x8.66”)
Weight	37.5 kg (82.7 lbs)
Terminal Type	M8 (22mm)
Case Material	ABS
Enclosure Protection	IP65
Cell Type - Chemistry	Prismatic - LiFePO4

Certifications

MSDS Datasheet	MSDS
UN38.3	DG61
CE Certification	EN61000-6-1, EN61000-6-3
ROHS Certification	ROHS
FCC Certification	Part15B
IEC62619 documentation or 49 CFR	IEC62619 / 49 CFR 173.185
IMDG Code	UN3840 / Class 9

Cells / Internal Arrangment

Product	Prismatic Aluminum-clad LFP Battery
Specification	3.2 V / 200 Ah
Cell / BMS Impact Protection	Large Foam Inserts as shown
Cable Size	All cable sizes capable of meeting all specs set forth by BMS
Cable Color	Color coded (Red/Black/Blue)
Low Temperature Probe	Probe placed on cells / wire attached to BMS
