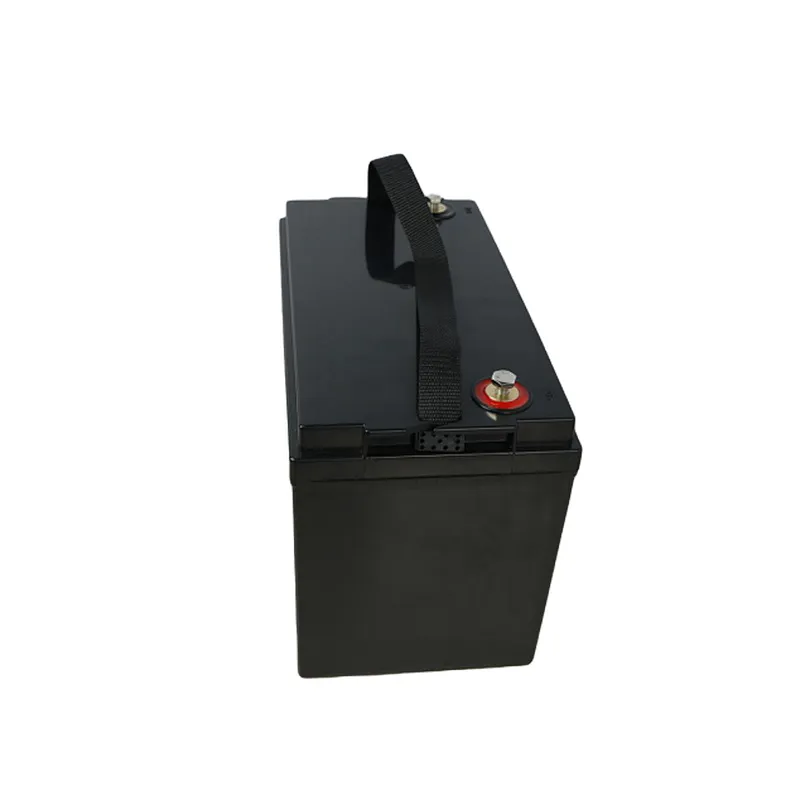

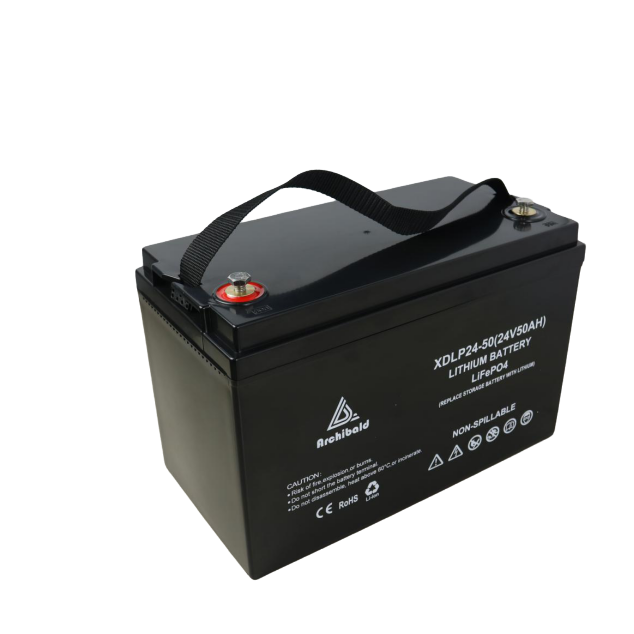

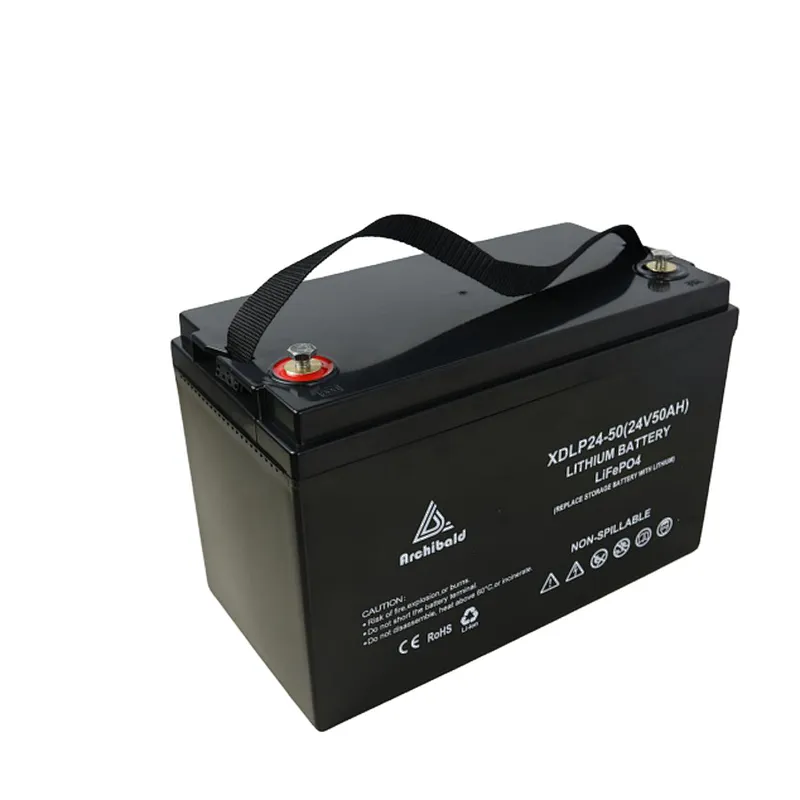

24V 50AH Lifepo4 Lithium Battery cheap lithium rv batteries Pack for RVs, Caravans, Motorhomes

24V 50AH Lifepo4 Lithium Battery cheap lithium rv batteries Pack for RVs, Caravans, Motorhomes

Model NO.: 24V 50AH Lifepo4

Quantity:

Product Description

The 24v 50ah Lifepo4 are the safest, and most reliable lithium-ion battery. They are adaptable and available both in car start-up and deep-cycle energy storage. Our 24v 50ah batteries are the perfect choice for RVs, golf carts, medical equipment, wheelchairs, scooters, boats, remote communication stations, and monitoring equipment.

XD Lifepo4 batteries can replace lead-acid batteries in applications where the current load does not exceed the limits. Please refer to the specifications of each battery for more information.

We are a leading manufacturer of LifePo4 Lithium Ion Battery in China, specializing in high-quality, dependable, and truly rated LIFEPO4 batteries. If you have any problems, contact us! We will give you a response within 24 hours.

XD is definitely a Lithium Ion Battery supplier and manufacturer worthy of your cooperation. We serve companies from more than 120 countries and provide high-quality customized services at the best wholesale prices. We sincerely invite you to visit our factory in China. Or contact us immediately, and bulk OEM and ODM batteries rignt now!

Charge Specification

Recommended Charge Current	15A - (Range: 0.2C-0.5C)
Maximum Charge Current	55 A
Recommended Charge Voltage	29.2V
BMS Charge Voltage Cut-Off	29.6V
Reconnect Voltage	28.4V
Balancing Voltage	27.24V

Discharge Specification

Maximum Continuous Discharge Current	50 A
Peak Discharge Current	100A(3-5s)
BMS Discharge Current Cut-Off	240A(300ms)
Recommended Low Voltage Disconnect	22 V
BMS Discharge Voltage Cut-Off	18.8 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage	20.4 V (2.3 ±0.1 vpc)
Short Circuit Protection	200-300 µs

Temperature Specification

Discharge Temperature	-4 to 130 ºF (-20 to 55 ºC)
Charge Temperature	32 to 130 ºF (0 to 55 ºC)
Storage Temperature - 1 month	-4 to 113 ºF (-20 to 45 ºC)
Storage Temperature - 1 year	32 to 95 ºF (0 to 35 ºC)
BMS High Temperature Cut-Off	170 ºF (77 ºC)
Reconnect Temperature	163 ºF (73 ºC)
BMS Low Temperature Cut-Off (Charging)	32 ºF (0 ºC)
Reconnect Temperature (Charging)	41 ºF (5 ºC)

BMS Overview

Over Current Protection	yes
Under Voltage Protection	yes
Over Voltage Protection	yes
Overload Protection	yes
High Temperature Protection	yes
Low Temperature Protection	32 ºF (0 ºC) / 41 ºF (5 ºC)
Short Circuit Protection	yes

Mechanical Specifications

Dimensions (L x W x H)	10.25 x 6.7 x 8.25” (260 x 168 x 209 mm)
Weight	26.46 lbs (12 kg)
Terminal Type	M8 (20mm)
Terminal Torque	10 ~ 12 N-m
Case Material	ABS
Enclosure Protection	IP65
Cell Type - Chemistry	Prismatic - LiFePO4

Certifications

MSDS Datasheet	MSDS
UN38.3	DG61
CE Certification	EN61000-6-1, EN61000-6-3
ROHS Certification	ROHS
FCC Certification	Part15B
IEC62619 documentation or 49 CFR	IEC62619 / 49 CFR 173.185
IMDG Code	UN3840 / Class 9

Cells / Internal Arrangment

Brand	Ganfeng LiEnergy
Product	Prismatic Aluminum-clad LFP Battery
Model	39148095-060Ah
Specification	3.2 V / 60 Ah
Cell / BMS Impact Protection	Large Foam Inserts as shown
Cable Size	All cable sizes capable of meeting all specs set forth by BMS
Cable Color	Color coded (Red/Black/Blue)
Low Temperature Probe	Probe placed on cells / wire attached to BMS
